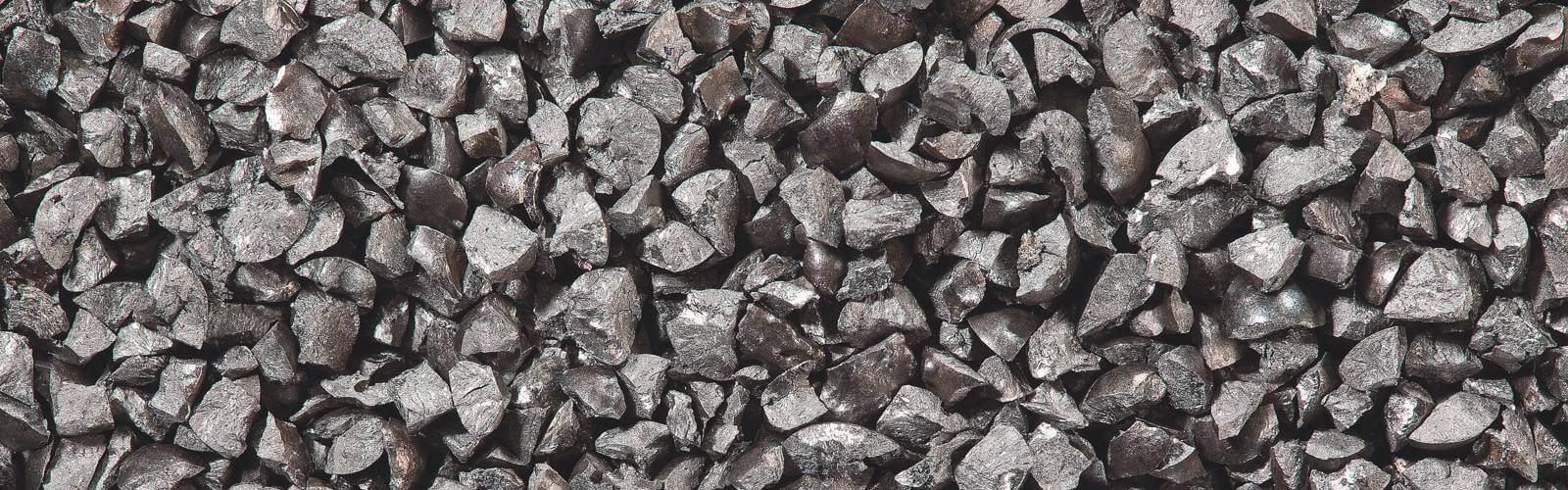

Chilled cast iron angular
Application areas
- Paint stripping
- Preparation for surface coating
- Rough blasting
- Rust removal
I am recyclable!
We recycle your blasting and abrasive waste in our own recycling plant.
Chilled cast iron angular is particularly suitable for processing metallic surfaces in pressure blasting machines. Due to its hardness and high carbon content, chilled cast iron repeatedly breaks into sharp-edged particles, which leads to a very high abrasive performance with short blasting times. We will be happy to help you.
PRODUCT FEATURES
| Typical physical properties | |
|---|---|
| Hardness of the new grain | 640 – 900 HV (57 – 67 HRC) |
| Grain shape | angular |
| Melting point | ca. 1.535 °C |
| Specific gravity | ca. 7 g/cm3 |
| Bulk density* | ca. 3,0 – 4,6 g/cm3 |
| Microstructure | martensitic |
*depending on grain size
| Typical chemical analysis | |
|---|---|
| C | 2,70 – 3,40 % |
| Si | 0,80 – 2,00 % |
| Mn | 0,25 – 1,00 % |
| P | 0,10 – 1,50 % |
| S | 0,06 – 0,25 % |
| Fe | Remainder |
Available sizes
| Designation
Average grain size (mm) |
|
|---|---|
| G 02 | 0,1 – 0,2 |
| G 05 | 0,1 – 0,3 |
| G 07 | 0,2 – 0,4 |
| G 12 | 0,3 – 0,6 |
| G 17 | 0,4 – 0,8 |
| G 24 | 0,6 – 1,0 |
| Designation
Average grain size (mm) |
|
|---|---|
| G 34 | 0,8 – 1,2 |
| G 39 | 1,0 – 1,4 |
| G 47 | 1,2 – 1,7 |
| G 55 | 1,4 – 2,0 |
| G 66 | 1,7 – 2,4 |
| G 80 | 2,0 – 2,8 |
Other grain sizes can be produced if required.
Blasting systems
Pressure blast machines
Wheel blast machines (wear protection recommended)
Packaging
25 kg bags on 1t pallets
1 ton loose in a big bag
SPECIFICATION
EN ISO 11124-2
DIN 8201-3
BS 2451
