Cylindrical cut wire shot
Application areas
- Blast cleaning
- Cast plastering
- Descaling
- Sand removal

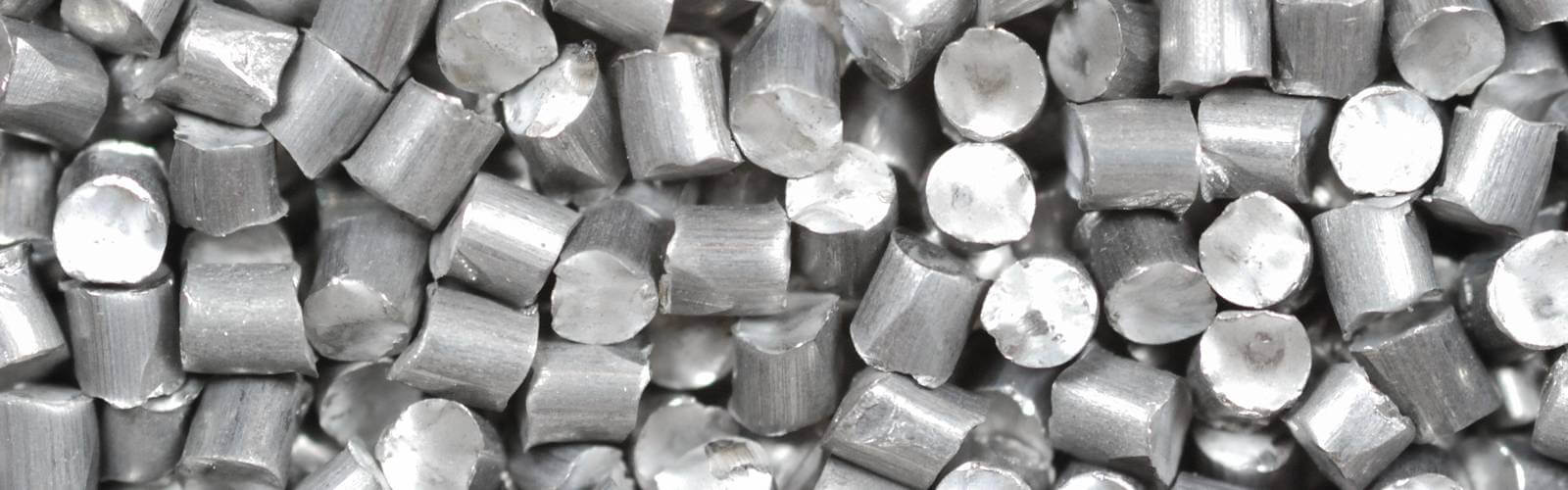

Cylindrical cut wire shot is cut from a drawn wire. The highest energy transfer among the abrasive materials can be achieved with wire grain. The precise geometry and the compacted structure offer maximum impact strength. The cylinder edge also creates aggressiveness and enables good cleaning of the surface even with stubborn scale. We will be happy to help you.
PRODUCT FEATURES
| Typical physical properties | |
|---|---|
| Hardness (norm) | +/- 450 HV (44 HRC) |
| Grain shape | cylindrical |
| Melting point | ca 1.535 °C |
| Specific gravity | ca. 7,4 g/cm3 |
| Bulk density* | ca. 3,9 – 4,9 g/cm3 |
*depending on grain size
| Typical chemical analysis | |
|---|---|
| C | 0,45 – 0,60 % |
| Mn | 0,40 – 0,70 % |
| Si | 0,05 – 0,22 % |
| P | max. 0,05 % |
| S | max. 0,05 % |
| Fe | Remainder |
Available sizes
|
Metric Diameter (mm) |
|
|---|---|
| 0,4 | |
| 0,6 | |
| 0,8 | |
| 0,9 | |
| 1,0 | |
| 1,2 | |
| 1,5 |
|
Metric Diameter (mm) |
|
|---|---|
| 1,6 | |
| 1,8 | |
| 2,0 | |
| 2,2 | |
| 2,4 | |
| 2,6 |
Other grain sizes can be produced if required.
Blasting systems
Pressure blast machines
Wheel blast machines
Packaging
25 kg bags on 1t pallets
1 ton loose in a big bag
SPECIFICATION
EN ISO 11124-5
DIN 8201-4
